District-cooling plants have load profiles that resemble heavy industry more than commercial real estate. Empower's Business Bay scheme draws 90 MW continuously and starts chiller motors that punch the bus voltage if the supply transformer is undersized. The 40 MVA / 132/11 kV unit upstream is therefore specified around motor-starting impedance and short-time overload capability, not around its kVA nameplate. We work through the sizing logic.
An Act of Electrical Violence

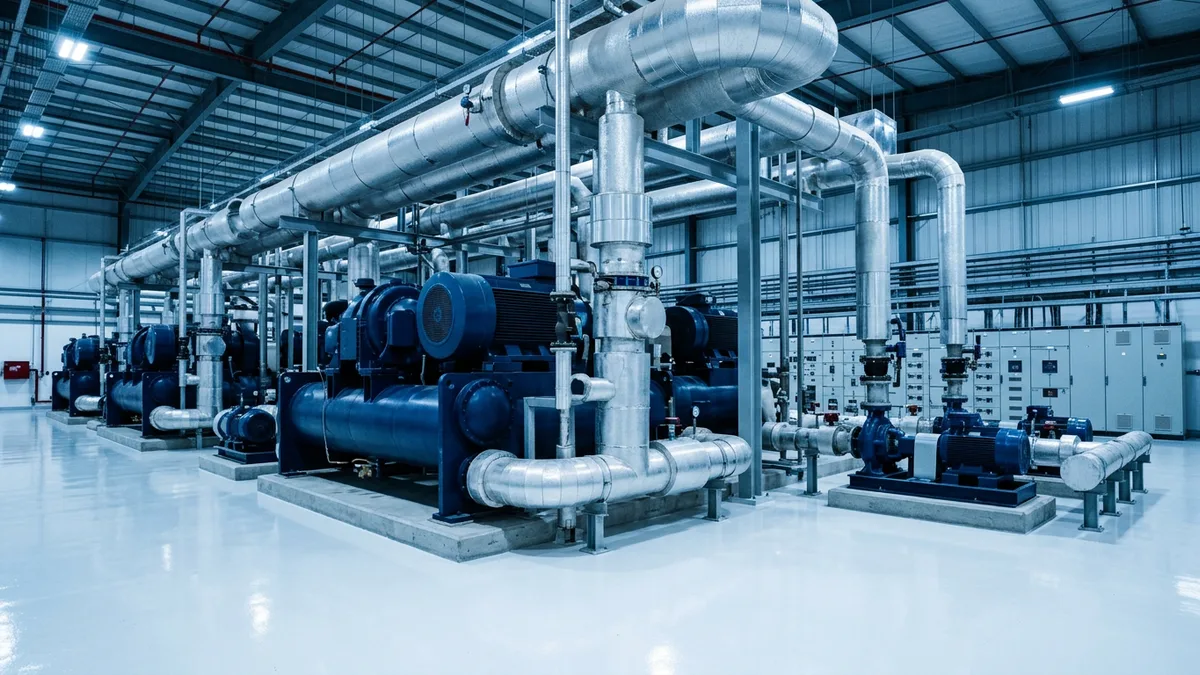

District cooling underpins the modern Gulf's viability, and the portfolios of giants like Empower and Tabreed represent billions in infrastructure investment. The workhorse of these plants is the multi-megawatt centrifugal chiller, and its prime mover is a medium-voltage induction motor, typically rated from 5 MW to as high as 15 MW.
At the moment of connection to the grid, a motor at rest behaves less like a machine and more like a deliberate short circuit. This "locked-rotor" condition for a 10 MW motor on Dubai's 11 kV system can mean an inrush current exceeding 6,000 amps for 10-15 seconds—a demand six-to-eight times its normal full-load current draw. The DEWA grid operator sees a brief, violent tug on the network.
The challenge for the plant designer is not merely to start the motor, but to do so without triggering a crippling voltage dip that affects neighbouring facilities or causes the plant's own protective relays to abort the process. This transient event is where careful electrical engineering earns its keep, and where common oversights can lead to costly operational failures.
How a 10 MVA Motor Thinks It's a Short Circuit
The fundamental sin is treating a multi-megawatt motor like a lightbulb. The mechanisms of failure are born from this simplification. When 800% of the motor's rated current flows through its windings, two things happen: immense thermal stress and violent mechanical force.
First, the thermal stress. Current squared times resistance (I²R) equals heat. Even for the few seconds of a locked-rotor condition, the surge of current can cause a significant temperature rise in the stator windings. If starting is too frequent, or if a protective relay fails, this can degrade the winding insulation, shortening the motor's life from a projected 25 years to perhaps 10 or 15. It's a slow death, but an expensive one.
Second, the mechanical force. The peak torque produced during a DOL start can be 200-300% of the motor's rated torque. This shockwave travels down the drivetrain, stressing the motor shaft, the coupling, and the compressor gearbox. It’s the mechanical equivalent of a sledgehammer blow with every start. Over time, this leads to fatigue failures, shaft misalignment, and bearing damage. We’ve seen catastrophic coupling failures on chiller sets where the root cause was traced back to the repeated brutality of the electrical starting method.
Here are the common failure points engineers must scrutinize:
- Winding Insulation: Is it Class H or Class F? Has it been properly specified to handle the temperature rise from the worst-case starting scenario?
- Shaft & Couplings: Are the drivetrain components rated for the peak transient torque, not just the running torque? Was the fatigue life calculated based on the expected number of starts?
- Utility Agreement: Has the maximum permissible voltage dip at the PCC been clearly defined and agreed upon? Is the plant's starting method designed to stay below this limit with a healthy margin?
Ignoring these turns the cooling plant from a reliable utility into a source of grid instability and a maintenance black hole. For a deeper look into the components that form the backbone of these systems, our section on package substations offers a comprehensive overview.
The Grid Operator's Unwanted Phone Call
Beyond damaging the plant's own equipment, the consequences of mismanaging motor starting ripple outwards. Utilities are obligated to protect all customers on their network from the actions of a single large consumer. DEWA’s standards, for example, provide clear tables on the maximum allowable starting currents and resulting voltage dips for equipment connected at 11 kV and 33 kV.
If your plant is causing a 7% voltage dip when the agreed limit is 4%, you are in breach of your connection agreement. The consequences can range from financial penalties to, in extreme cases, the threat of disconnection until the issue is rectified. This isn’t just a theoretical risk. As more large loads are connected to urban grids, utilities are policing power quality with increasing vigilance.
This is where a list of common, but flawed, assumptions often leads to trouble:
1. "The utility transformer will absorb the dip." The impedance of the upstream network helps, but it doesn’t make the problem disappear. The voltage dip is a function of the ratio between the source impedance and the load impedance. A massive motor drastically lowers the load impedance, making a voltage drop inevitable unless the starting current is controlled.
2. "We can just use a VFD for everything." Variable Frequency Drives are excellent for speed control and offer the gentlest start possible, ramping current and voltage up smoothly. But they come with their own considerable baggage: harmonic distortion. A standard 6-pulse VFD is a notorious generator of 5th and 7th harmonics, which pollute the electrical network.
3. "The motor can handle it." Yes, NEMA and IEC standards require motors to be capable of a certain number of DOL starts per hour. But this is a rating, not a recommendation. Operating at the limit is not a robust design philosophy, and it ignores the cumulative fatigue damage to the entire drivetrain.
Falling for these myths leads directly to failed compliance audits, strained utility relationships, and unreliable asset performance. Before you can even think about advanced controls, you must get the fundamentals of starting method selection right. For tailored advice, it’s often best to get in touch with specialists.
Taming the Inrush Beast: Autotransformers and Harmonics
If DOL is too harsh and VFDs introduce harmonics, what is the solution? For decades, the workhorse for large motor starting in heavy industry has been the Motor Starting Autotransformer (MSAT).
An MSAT is a special type of transformer with taps, typically at 50%, 65%, and 80% of the primary voltage. The motor is started at one of these reduced voltage taps. Because both the starting current and the starting torque are proportional to the square of the applied voltage, this has a powerful effect. Starting at the 65% tap reduces the motor’s inrush current from the line to just (0.65)² = 42% of what it would be with a DOL start. This is usually enough to bring the voltage dip well within utility limits.
After a pre-set time, when the motor has reached 70-80% of its nominal speed, the starter transitions it to the full line voltage. This transition is critical. Traditional "open transition" starters disconnect the motor before reconnecting it to the full voltage, which can cause a second, damaging current transient. Modern "Korndorfer" starters use a closed-transition method with a series reactor to ensure the motor is never disconnected from the source, providing a much smoother transfer.
But what about VFDs? Their benefits are real, especially the energy savings from being able to modulate the chiller’s capacity. The solution to the harmonic problem they create is not to avoid VFDs, but to specify them correctly.
Instead of a basic 6-pulse drive, a modern district cooling plant should use a 12-pulse or even 18-pulse drive. These use phase-shifting transformers to cancel out the most problematic harmonics. The result is a much "cleaner" current waveform. Where even this is not enough, or for retrofitting older plants, active or passive harmonic filters are required. These are banks of capacitors and reactors tuned to absorb the harmonic frequencies, preventing them from polluting the utility grid. DEWA, for instance, sets specific limits on Total Harmonic Distortion (THD) and individual harmonics, and a full harmonic analysis study is a non-negotiable part of the design submission for any new large F-drive installation.
Key Takeaways
- Direct-on-line (DOL) starting for multi-megawatt chiller motors is generally not viable due to the excessive voltage dips they cause on the utility grid, violating power quality standards.
- Starting methods like autotransformers reduce inrush current quadratically with voltage, providing a robust and reliable way to meet utility requirements and reduce mechanical stress on equipment.
- While VFDs offer superior control and efficiency, they introduce harmonic currents that must be mitigated using multi-pulse drive configurations (12- or 18-pulse) and/or dedicated harmonic filters to comply with stringent utility standards like those from DEWA.
The Engineer's Takeaway
The physics of a 1.6 GW cooling empire rests on getting the first 15 seconds of a motor's life right. In an era of complex smart grids, the unglamorous, heavy engineering of transformers and starting methods remains the bedrock of reliability. Get it wrong, and the fanciest control system in the world won’t save you when the lights start to flicker.
