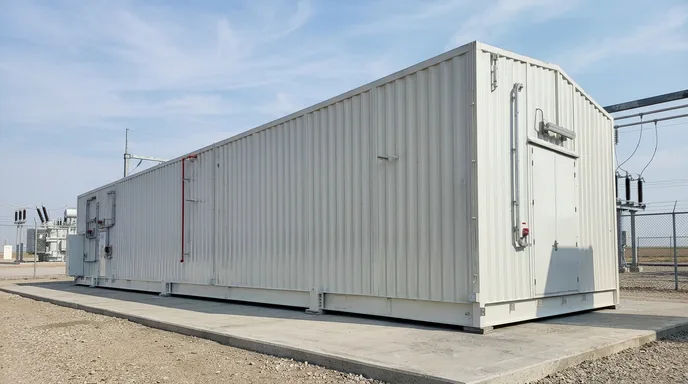

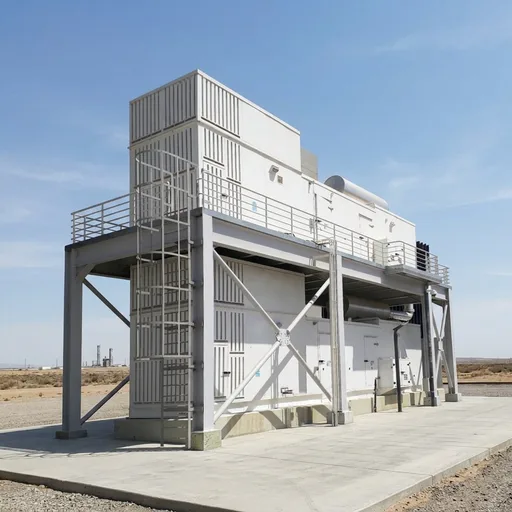

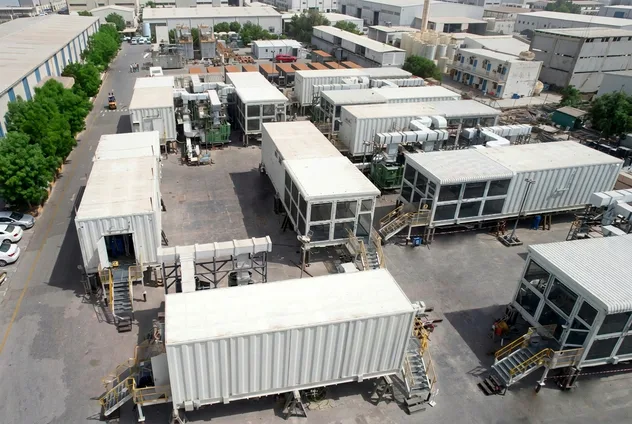

    Containerized Substation — view 1 of 4
    Containerized
    5MVA
    Max Capacity
    36kV
    Voltage Class
    100%
    Factory Tested
    3in 1
    Integrated
    Containerized · Skid-Mounted · Turnkey

    Containerized Substation

    Plug & play containerized systems, custom skid and container fabrication, and complete mechanical & electrical integration. Factory-assembled and tested for rapid deployment.

    IEC 62271
    IEC 60076
    IEC 61439
    ISO 9001
    UL
    CSA
    DOE
    CE
    Capacity Range
    500 kVA – 5 MVA
    Voltage Class
    Up to 36 kV
    Type
    Indoor / Outdoor
    Standards
    IEC 62271 / IEC 60076
    Testing
    Factory Assembled & Tested
    Protection
    IP54
    Type Tested
    Warranty
    Global

    Engineering Features

    Plug & Play Containerized Systems

    Complete, self-contained power solutions in standard or custom containers — delivered ready to connect.

    Technical Data

    ParameterRange / Value
    Rated Power500 kVA – 5 MVA
    MV Voltage11 – 36 kV
    LV Voltage230/400 V – 690 V
    Frequency50 / 60 Hz
    MV SwitchgearRMU / VCB Panel
    LV PanelACB / MCCB Distribution
    EnclosureGalvanized Steel / SS
    Protection ClassIP54 / IP64 / IP65
    DimensionsCustom per configuration
    WeightFrom 2,500 kg

    Standard range parameters — custom specifications available on request.

    Related glossary terms

    electricalkVA (Kilovolt-Ampere)Unit of apparent power equal to 1,000 volt-amperes. Transformer capacity is rated in kVA rather than kW because the transformer must handle both real and reactive power.mechanicalIP Rating (Ingress Protection)Two-digit code indicating protection against solid objects (first digit, 0–6) and water (second digit, 0–9).mechanicalC5-M (Corrosion Protection Class)Highest corrosion protection class under ISO 12944, required for coastal, offshore, and highly corrosive industrial environments.protectionBuchholz RelayA gas-actuated protective relay installed in the pipe between the main tank and conservator of oil-filled transformers. Detects gas accumulation from internal faults.standardsIEC 60076Primary international standard series for power transformers, covering ratings, temperature rise, insulation levels, tests, and tolerances.
    GCC Compliance & Trust Signals

    DEWA Approved

    Dubai Electricity & Water Authority vendor

    ADDC / AADC

    Abu Dhabi Distribution Company approved

    SEWA / FEWA

    Sharjah & Federal Electricity authorities

    ADNOC AVL

    ADNOC Approved Vendor List

    IEC 60076

    International standard for power transformers

    ARAMCO 17-SAMSS

    Saudi ARAMCO material specification

    Regional Overview

    DEWA, ADDC, SEWA, FEWA, KAHRAMAA and SEC approved turnkey package substations for the GCC. 500 kVA to 5 MVA at 11 kV / 22 kV / 33 kV per IEC 62271-202, factory-assembled in Jebel Ali with distribution transformer, ring main unit, LV switchboard and weatherproof enclosure rated for 50 °C+ ambient and saline-coastal service. Standard for utility, oil & gas, construction and mega-project deployment across the UAE and Saudi Arabia.

    Regional Reference Projects

    DEWA Secondary Substations · Dubai Emirate

    ADDC Distribution Substations · Abu Dhabi

    Saudi Vision-2030 Mega-Projects · NEOM, Diriyah, Qiddiya

    ADNOC Field & Plant Distribution

    GCC Construction Site Power · Mega-Project Phasing

    Saudi Aramco Pipeline & Pump Stations

    Applications

    Where Containerized Substation Excel.

    01
    01

    DEWA & ADDC Substations

    DEWA and ADDC approved containerised package substations for utility secondary substation deployment.

    02
    02

    ADNOC & ARAMCO Process Sites

    Hazardous-area package substations for ADNOC and Saudi Aramco process plants, gas terminals and remote sites.

    03
    03

    Vision 2030 Mega-Projects

    Pre-engineered substations for NEOM, The Red Sea Project, Lusail and other Vision 2030 mega-developments.

    04
    04

    GCC Mining & Construction

    Skid-mounted substations for GCC mining, construction-site power and temporary urban development feeds.
