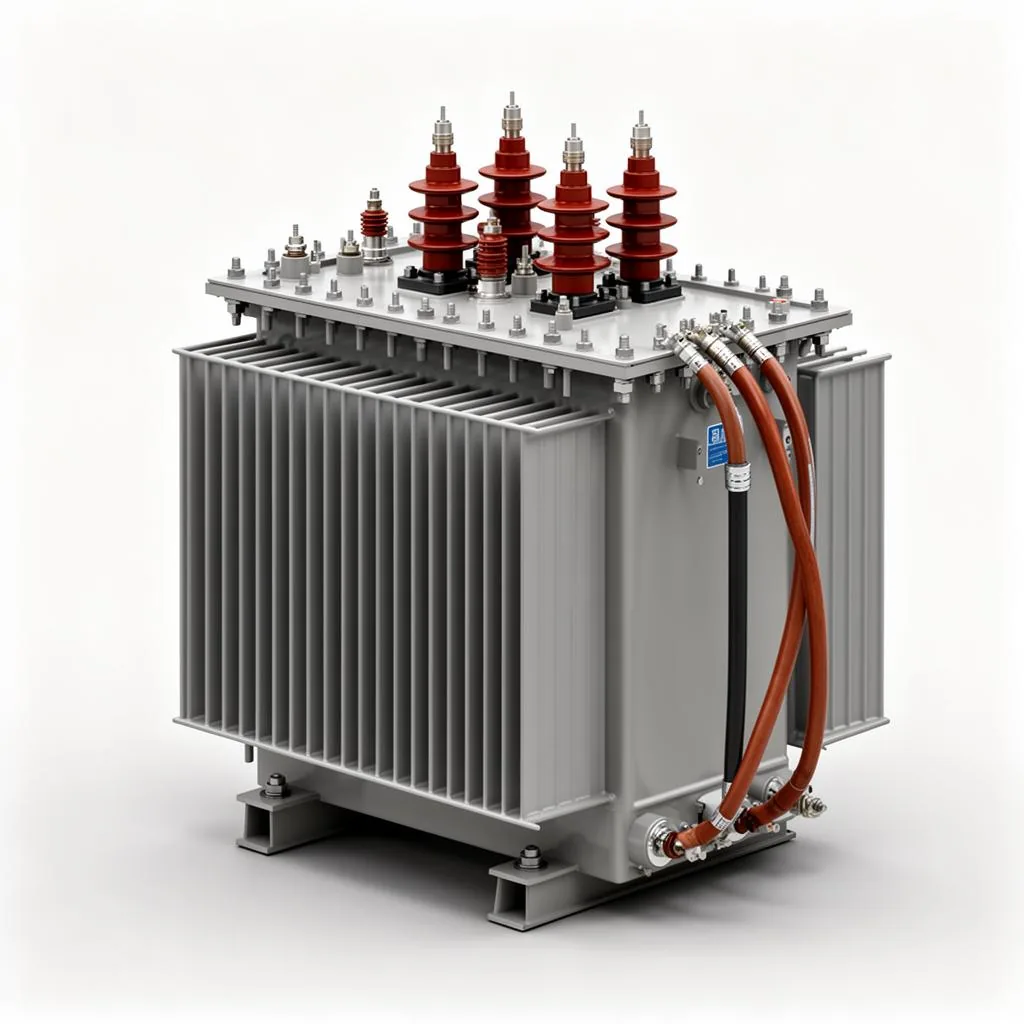

Earthing (Grounding) Transformers
Earthing transformers providing an artificial neutral point for unearthed or delta-connected MV systems — enabling reliable ground-fault detection, controlled fault clearance, and protection coordination in industrial and renewable networks.
Engineering Features
Zigzag or Star-Delta Winding
Standard zigzag configuration for compact footprint, or star-delta with separate auxiliary winding when station service is required.
Technical Data
| Parameter | Range / Value |
|---|---|
| Rated Power | 50 kVA – 5 MVA (continuous equivalent) |
| System Voltage | Up to 36 kV |
| Frequency | 50 / 60 Hz |
| Winding Type | Zigzag (Z) / Star-Delta (YNd) |
| Short-Time Current | Project-specific (typ. 400–4000 A for 10 s) |
| Cooling | ONAN / KNAN |
| Insulation Class | BIL 75 / 125 / 170 kV per voltage class |
| Auxiliary Winding | Optional 230/400 V |
| Standards | IEC 60076-6 / IEEE C57.32 / IEEE C62.92 |
| Design Life | 30+ years |
Standard range parameters — custom specifications available on request.
DEWA Approved
Dubai Electricity & Water Authority vendor
ADDC / AADC
Abu Dhabi Distribution Company approved
SEWA / FEWA
Sharjah & Federal Electricity authorities
ADNOC AVL
ADNOC Approved Vendor List
IEC 60076
International standard for power transformers
ARAMCO 17-SAMSS
Saudi ARAMCO material specification
Zigzag and star-delta earthing (grounding) transformers manufactured in Jebel Ali for GCC utility, oil & gas and renewable service. 50 kVA to 5 MVA at up to 36 kV per IEC 60076-6 — providing an artificial neutral on ungrounded systems and supporting NER / fault-current limitation. Used at DEWA, ADWEC, SEC distribution sites, ADNOC and ARAMCO process plants and GCC renewable IPPs.
DEWA Distribution Network Neutral Grounding
ADNOC Plant & Field Earthing · UAE
Saudi Aramco Process-Plant Earthing
MBR Solar Park IPP Grounding · Dubai
GCC Petrochemical Plants · YASREF, SATORP
Saudi Vision-2030 Mega-Project Earthing
Where Earthing (Grounding) Transformers Excel.
DEWA Distribution Neutral Grounding
IEC 60076-6 zigzag earthing transformers for DEWA, ADWEC and SEC distribution networks — providing artificial neutral on ungrounded systems.
ADNOC & ARAMCO Plant Earthing
Star-delta earthing transformers for ADNOC and Saudi Aramco upstream and process plants — IT-system grounding and NER fault-current limitation.
MBR Solar Park IPP Grounding
Earthing transformers for the Mohammed bin Rashid Al Maktoum Solar Park collection substations and PV IPP grid-connection systems.
Saudi Vision-2030 Mega-Projects
Zigzag grounding transformers for NEOM, Diriyah and Qiddiya MV distribution requiring artificial neutral on ungrounded systems.
