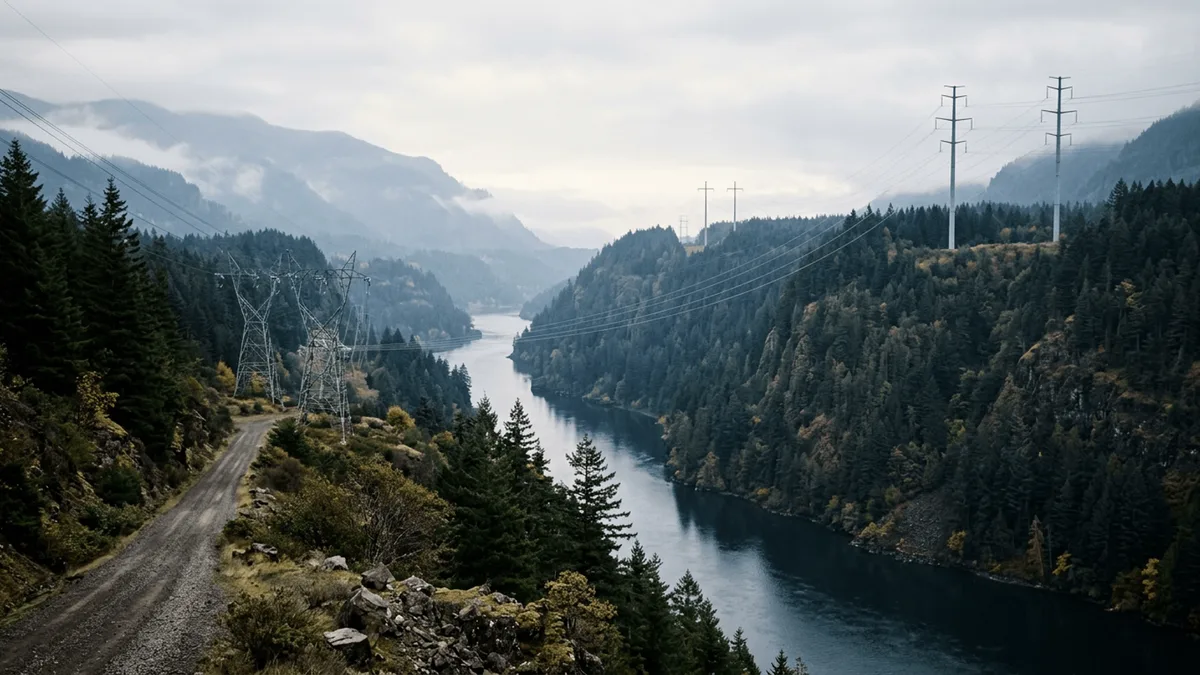

What does it take for two large, independent electrical grids to trust one another? The question goes beyond markets and regulations, touching the physical realities of frequency, phase, and stability. In a world of deeply interconnected yet fundamentally separate power systems, this trust cannot be based on promises; it must be engineered, verified, and continuously enforced. One of the most elegant answers is manifested in the transmission corridor running from the Pacific Northwest to Southern California, a system that constitutes a complex and remarkably effective electrical handshake.
This massive artery of power, a cornerstone of Western US grid reliability, relies on two distinct technologies operating in parallel: a 500-kV alternating current (AC) system and a high-voltage direct current (HVDC) line. Their combined operation, governed by a rigorously calculated and mutually respected operational limit, provides a level of resilience, control, and stability that neither technology could achieve on its own. It represents a premier example of how disparate systems can be integrated not just efficiently, but safely.
The Synchronous Backbone and the Asynchronous Firewall
The decision to operate high-voltage AC and DC systems in parallel is rooted in leveraging the fundamental, and complementary, strengths of each. The 500-kV AC lines function as a synchronous tie. In any AC interconnection, all connected generators must spin in perfect unison, their rotors locked together by the magnetic fields that create a system-wide frequency—typically 60 Hz in North America. These AC lines effectively mesh the two regional grids into a single, massive rotating machine. This synchronous connection is the basis of regional grid stability, allowing the immense, shared inertia of thousands of generators to absorb small, instantaneous mismatches between supply and demand.
Furthermore, the AC system serves as the indispensable backbone for managing the physics of the grid. It provides the critical reactive power (measured in VARs) necessary to support and control system voltage, much like pressure is required to move water through a network of pipes. Without robust voltage support from AC sources like generators, capacitors, and reactors, the grid cannot function. Power flow across the AC network is not dispatched directly; it divides itself according to the impedance of the available paths, following Kirchhoff’s laws. This forms a resilient, self-regulating mesh, but it also contains a critical vulnerability.
This deep interconnectedness is also a liability. Because every part of the AC grid is physically synchronized, a major disturbance—such as the sudden loss of a large generator or a fault on a key transmission line—can propagate across the AC ties as a wave of instability. A severe frequency or voltage deviation in one region can trigger a cascade of protective relay actions in the other, potentially leading to a widespread blackout. The very feature that provides stability during normal operation becomes a conduit for failure during extreme events.
This is where the parallel HVDC line provides its most profound benefit. It acts as an asynchronous firewall. An HVDC system uses power electronics to convert AC power to DC at a rectifier station, transmit it over the line, and then convert it back to AC at an inverter station. Because the two AC-to-DC conversion processes are independent, the frequency and phase angle of the sending-end grid are completely decoupled from the receiving-end grid. It breaks the synchronous chain.
This asynchronous nature allows grid operators to schedule and transfer vast amounts of power with surgical precision, independent of the AC system’s condition. The power flow on an HVDC line is a fully controllable parameter set by the operator, not a passive result of system impedance. This capability is invaluable for managing congestion, optimizing generation across vast distances, and ensuring contract path delivery. Moreover, modern HVDC control systems, governed by standards like IEC 60633, can react in milliseconds to dampen power oscillations on the connected AC system, actively improving stability. Together, the two systems offer both robust synchronous stability for local reliability and a controllable, bulk power "superhighway" that isolates the interconnected grids from each other’s faults—a whole far greater than the sum of its parts.
The Diplomacy of Path Ratings
In the lexicon of transmission planning, a "path rating" is a carefully negotiated operational limit for a transmission corridor, which may consist of multiple AC and/or DC lines. It is not merely the sum of the thermal capacities of the individual conductors, a common misconception. Instead, it is a holistic system limit derived from exhaustive, multi-faceted engineering studies that represent a form of engineering diplomacy—a binding agreement between grid operators founded on the unyielding laws of physics.
These studies are performed in accordance with strict reliability standards, such as those set by the North American Electric Reliability Corporation (NERC). The core principle is to ensure the grid can withstand a range of probable and severe contingencies without violating thermal limits, voltage limits, or stability limits. The analysis focuses on maintaining system integrity after the unexpected loss of one or more key components, a methodology known as "N-1" or "N-2" security analysis.
The process involves several types of complex simulations:
1. Power Flow (Load Flow) Analysis: This foundational study calculates the steady-state operating conditions of the grid. Planners model thousands of scenarios to ensure that if one line in the corridor (or a nearby line) trips offline, the remaining lines can absorb the redistributed power flow without exceeding their continuous or emergency thermal ratings (conductor temperature). It also ensures system voltages remain within acceptable bounds, typically defined by standards like ANSI C84.1.
2. Transient Stability Analysis: This is a dynamic simulation that models the grid’s behavior in the first few seconds following a severe disturbance, such as a three-phase short circuit. The analysis determines whether the synchronous generators across the entire interconnection will remain in synchronism—whether the "handshake" will hold. If the disturbance is too severe or lasts too long (exceeding the Critical Clearing Time), some generators may lose synchronism and begin to spin out of control, leading to a cascading system collapse. The path rating is set to a level that guarantees synchronism is maintained for all credible faults.
3. Voltage Stability Analysis: This study assesses the system’s ability to maintain stable voltages under conditions of heavy power transfer. As a corridor is loaded more heavily, the reactive power losses increase, causing system voltage to decline. At a certain point, known as the "nose of the P-V curve," the system hits a tipping point and experiences an uncontrollable, rapid decline in voltage, leading to voltage collapse. The path rating is set well below this point to maintain a safe stability margin.
The final path rating is the most restrictive limit found across all these studies. The constraint might be thermal on a hot day, or it might be transient stability during a period of high interchange. This rating represents a contract of trust, obligating each operator to stay within predictable, safe boundaries, even if the physical lines could momentarily carry more power. It acknowledges that the true limit of the system is not heat, but stability.
The Digital Enforcement Layer
If the path rating is the diplomatic agreement, then a suite of sophisticated, high-speed control and protection systems constitutes the enforcement. This digital handshake operates in real time to ensure the physical handshake between the grids remains firm.
For the HVDC line, this control is centralized and immediate. The line’s master controller receives a power schedule from the grid operator and executes it by precisely managing the power electronic valves at both terminals. But its role is more than just scheduling. It can be programmed with supplementary controls to constantly monitor the AC system’s frequency and angle. If it detects oscillations, it can automatically modulate its power transfer—within milliseconds—to provide damping and help stabilize the AC grid. It is an active participant in system stability.
For the interconnected AC network, the key enforcement tools are often Remedial Action Schemes (RAS), also known as Special Protection Systems (SPS). These are automated, pre-planned defense systems designed to respond to specific, high-consequence contingencies identified in the planning studies. They go beyond the action of a single circuit breaker, executing a coordinated, system-wide response.
For example, a RAS might be designed to continuously monitor the power flowing on the entire transmission corridor. If it detects the sudden, unplanned loss of the HVDC line, which would instantly shift hundreds or thousands of megawatts onto the parallel AC system, it would spring into action within a fraction of a second. Based on its pre-programmed logic, it might automatically and instantaneously command one or more large generators to reduce their output or, in extreme cases, trip a certain amount of customer load. These actions, guided by communication standards like IEC 61850 for substation automation, are precisely calculated to keep the remaining AC lines within their stability limits and prevent a cascading outage.
By honoring the path rating, operators ensure that the handshake between their grids remains firm, predictable, and resilient. This disciplined operation, backed by automated digital enforcement, prevents one region’s problems from jeopardizing another’s, allowing for massive economic and reliability benefits while preserving the integrity of each independent system.
