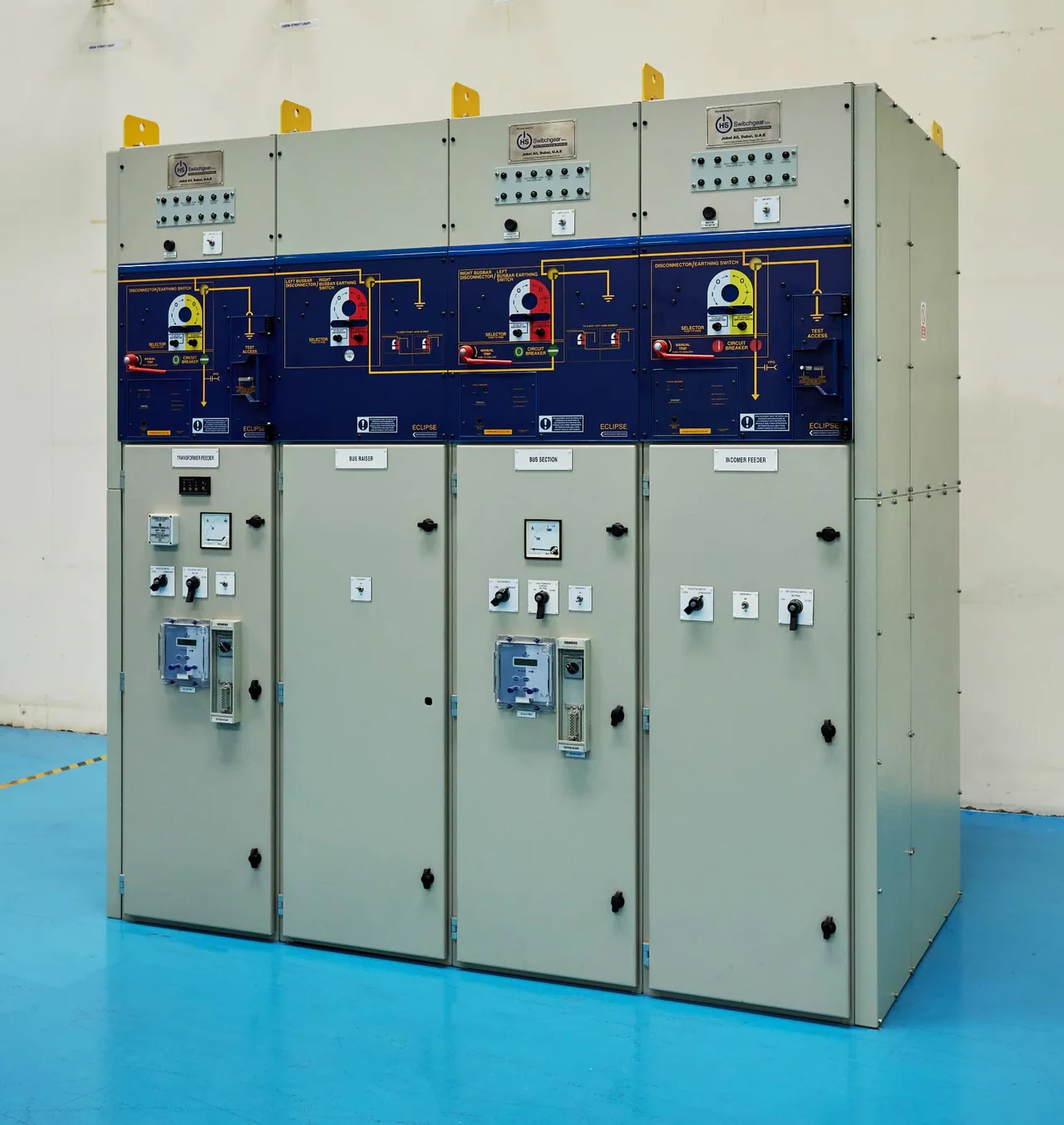

MV Switchgear — Eclipse Range
The Eclipse range by HS Switchgear — 12kV indoor distribution switchgear with vacuum circuit breakers, magnetic actuator technology, and fully SF6-free design for modern, sustainable distribution networks.
Engineering Features
SF6-Free Design
Completely free of SF6 greenhouse gas — environmentally responsible switchgear technology.
Technical Data
| Parameter | Range / Value |
|---|---|
| Rated Voltage | 12 kV |
| Rated Current | 630 / 1250 / 2000 A |
| Short-Circuit Breaking | 25 kA (3 sec) |
| Frequency | 50 / 60 Hz |
| BIL | 75 kV |
| Switching Device | Vacuum Circuit Breaker |
| Operating Mechanism | Magnetic Actuator |
| Protection Class | IP4X |
| Internal Arc | IAC AFLR 25 kA, 1 sec |
| Dimensions (W×D×H) | 600 × 1350 × 2200 mm |
Standard range parameters — custom specifications available on request.
